PCIx Motion Controllers

(If you're having difficulty, please try
to a different Internet browser.)

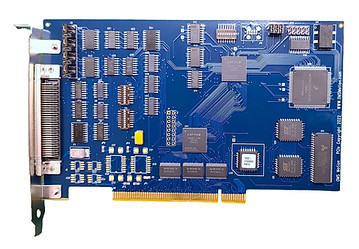

The PCIx is a PCI 4 axis motion controller that conforms to the PCI Rev. 2.2 specification. The PCIx is a four-axis controller for either servo or stepping motors. It supports 12 general purpose bits which are opto-isolated for optimum noise immunity. The home and over travel inputs are opt-isolated. The architecture of the PCIx includes a dual-port RAM for special functions where fast collection of large amounts of data is required, such as profile capture. The servo output is a +/- 10V or 0-10V signal that is driven by a 16-bit DAC. The servo control loop is a PID filter with feed forward coefficients. The step pulse is a TTL level 50% duty cycle square wave that supports velocities of 0 through 1,044,000 pulses per second. The encoder feedback functionality supports quadrature encoders up to 4 MHz at a 4 times resolution and is used as the servo feedback, as feedback for the stepper axes or as independent position feedback. The encoder feedback can provide slip or stall detection. Every axis includes dedicated +/- over travel inputs, a home input, and an auxiliary output.


The PCIx is available in several different models at several different prices.

OMS Motion Inc. is a leading supplier of PCIx motion controllers and solutions for motion control applications. We provide our customers with the latest in PCIx interface technology, offering them increased performance and reliability with their motion control systems. Our products are designed to meet the highest industry standards and are backed by our professional team of experts, who are available to assist you every step of the way. With OMS Motion Inc., you can trust that we will deliver the best solutions tailored to your unique motion control requirements. Connect with a member of our team today to receive your custom quote!
